Solar Mirror

Description

1.1mm Ultra Thin Solar Mirror Sheet (Heliostat mirror ) for Sterling or Dish CSP units

1.1mm Solar Mirror

1)Made of ultra thin high quality 1.1mm electronic glass
2) Silver coated, 3 protective paints
3) Light Reflectivitity not less than 93.7% averagelly
4) Anti-UV

5) Size: 1245 x 1092mm or any cut sizes

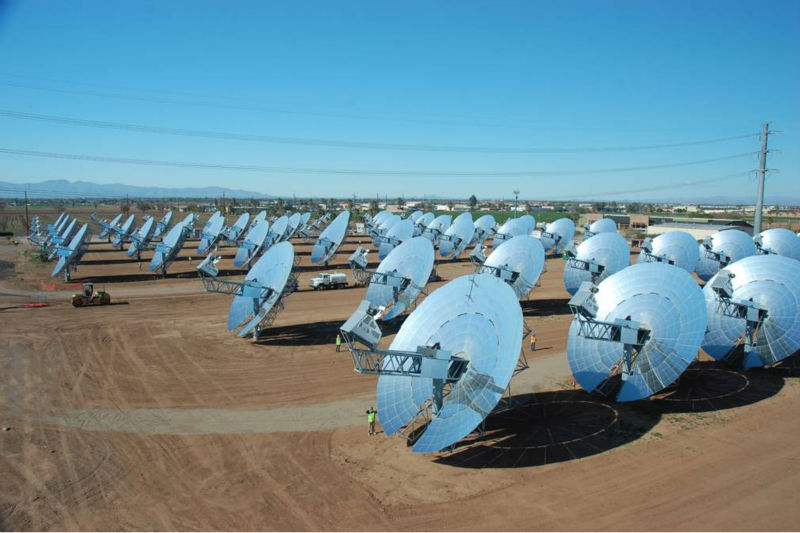

6) Widely used for Dish /Sterling CSP Units

Brief Information

Product Name	Solar Mirror
Delivery Time	Within 4weeks
Sizes	Bigboard/customized sizes
Thickness	3mm,3.2mm , 4mm
Inspection standard	Surface no scratches, no handprint, no depletion mark, no stain, no mildew, avalanche edge, lack of Angle etc. Glass mirror, mirror clean, and there can be no stain, besmirch.
Packaging Request	1) standard wooden crates; 2) end-caps packing; 1) or 2) into container truck transportation. We, Sinoy , INC. Expert in wooden crates packing reinforce measures. Pls rest assure that it can prevent possible breakage on the road of long distance of transportation.
Attention for process of package	Use scratch proof material between mirror sheets and strictly prohibit sliding one mirror sheet on the other mirror sheet surface.
Transportation and storage	Put in dry and airy place, not to be laid flat or sideling, prevent touching acid-base etc corrosion materials.
Material Standard	SMFG2004-03 standard, top quality mirror grade glass
Certificate	CE, ISO9001:2008,SGS etc
Spraying the Code	As specific request
Mark	As specific request
Other Accessory	Dryer etc
After-Sale Service	1) common samples are free.
	2)special processing samples’ design fee will be decucted when the order is placed.
	3)Quality discrepancy expiry date: within 30days after receiving the cargo.



The mirror industry in solar power mirror has the following characteristics

: A, with the German world advanced production technology, import high-grade protect paint, three layer protection paint, solar professional system mirror production line length of 190 meters, one-time finish, packets into product quality, better weatherability, longer service life, but for over 25 years.

B, high reflectivity, reflectivity can reach more than 93%. Using advanced super through special solar glass.
