Description

Specification

Product name	Laminated Glass
Mini. size	300*300mm
Max. size	2440*6000mm
Thickness	6.38mm~17.52mm
PVB thickness	0.38mm,0.76mm, 1.14mm,1.52mm etc
Color	Clear, Ultra clear; Euro bronze, golden bronze; Blue, ocean blue, dark blue, light blue; F green, light green, dark green; Euro Grey, dark Grey. online
Application	l External use of windows, doors, shop fronts in office, houses, shops etc. l Interior glass screens, partitions, balustrades etc. l Shop display windows, showcases, display shelves etc. Furniture, table-tops, picture frames etc.
Advantage	l Two or three layers of clear float glass “sandwiched” together with clear or colored PVB interlayer, laminated glass is the one glass that reconciles the aesthetic benefits of glass with a genuine concern for safety; offering superior protection against glass breakage, as well a harmful solar rays and hazardous noise levels. l Holds together when shattered. The PVB interlayer keeps the glass bonded, even when broken, resulting in a characteristic spider web cracking pattern across the glass. l Cyclone resistant l Superior UV blockage l Excellent sound damping properties Low visible distortion
Delivery time	Within 4 weeks

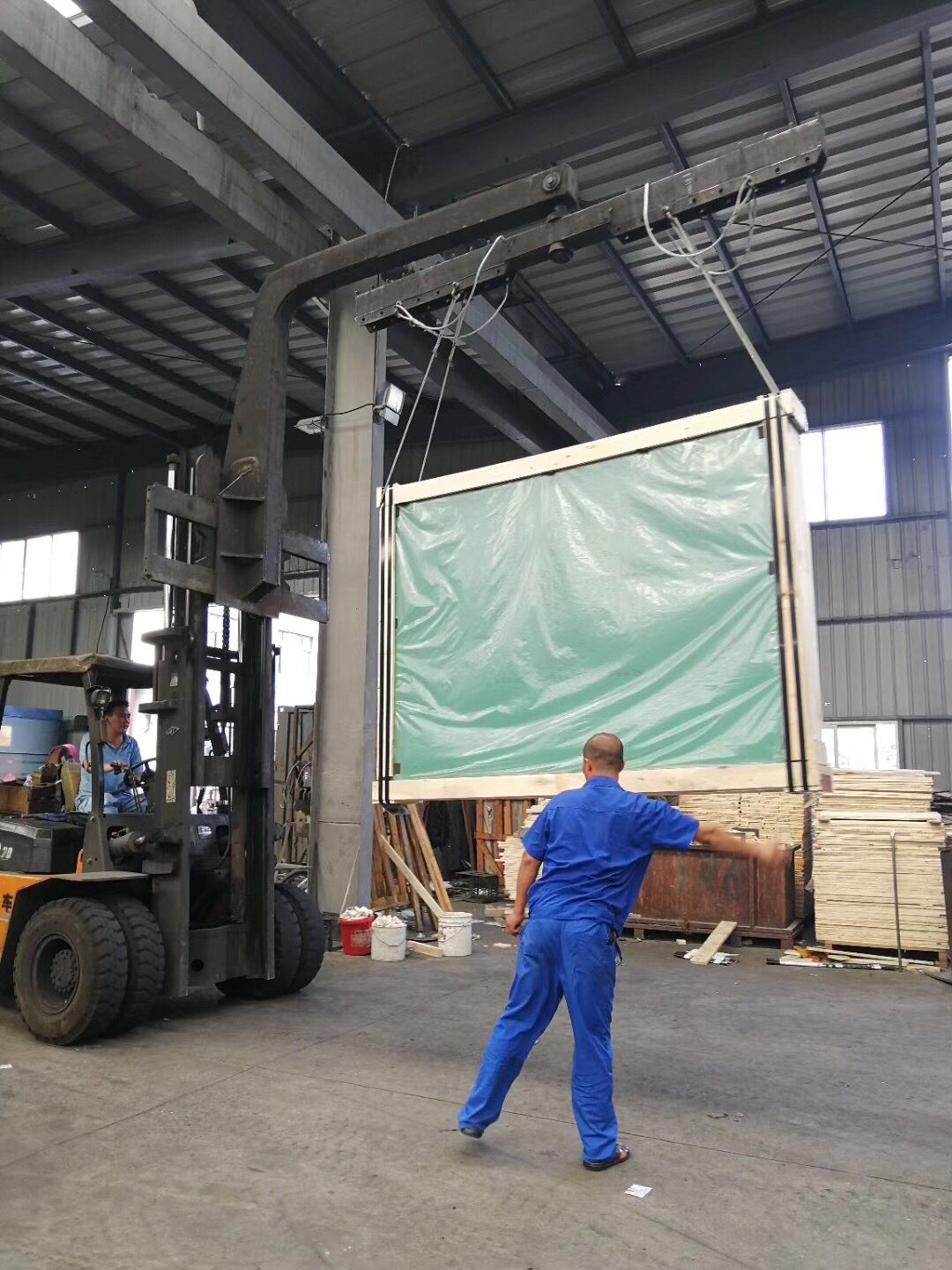

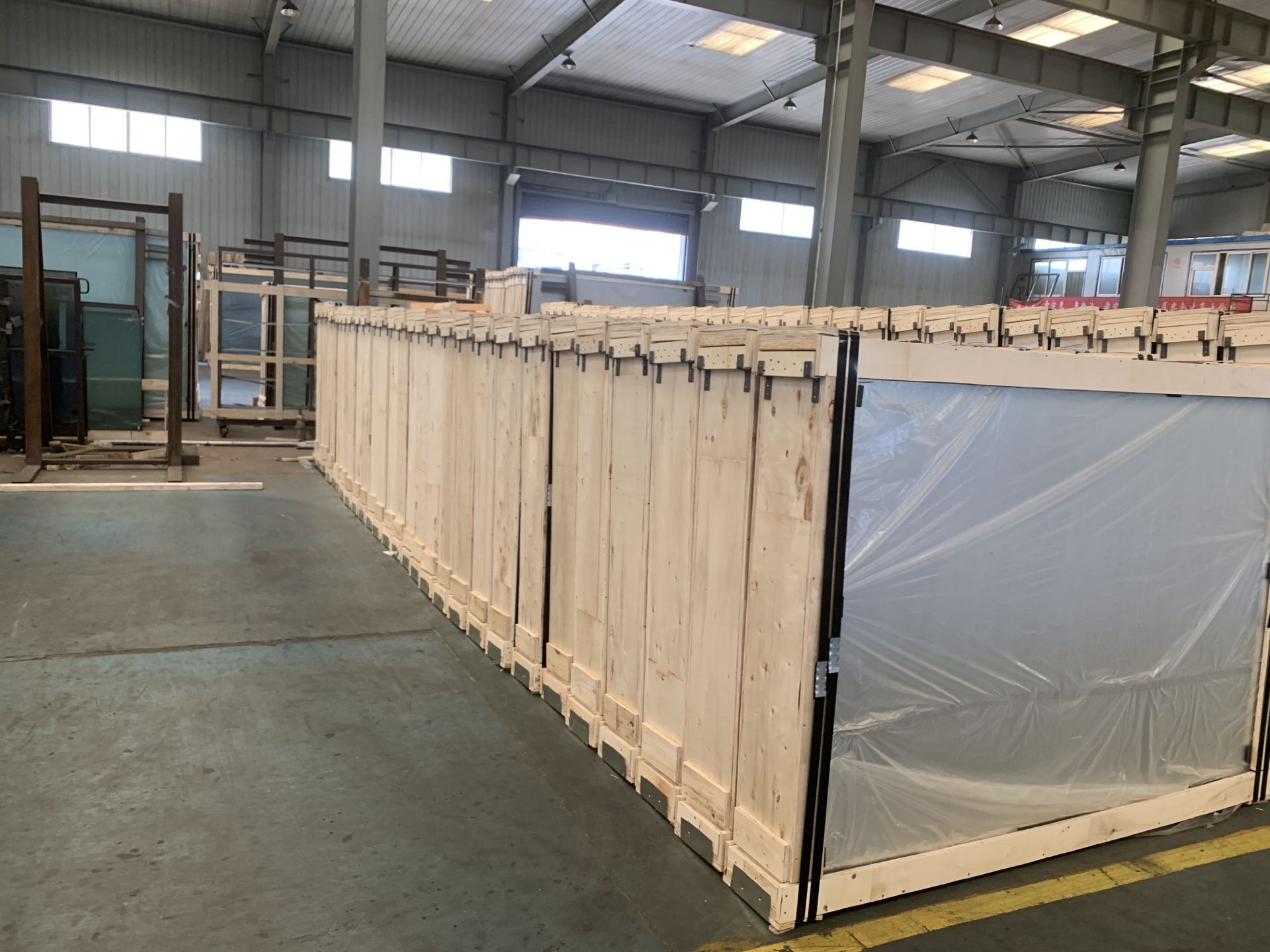

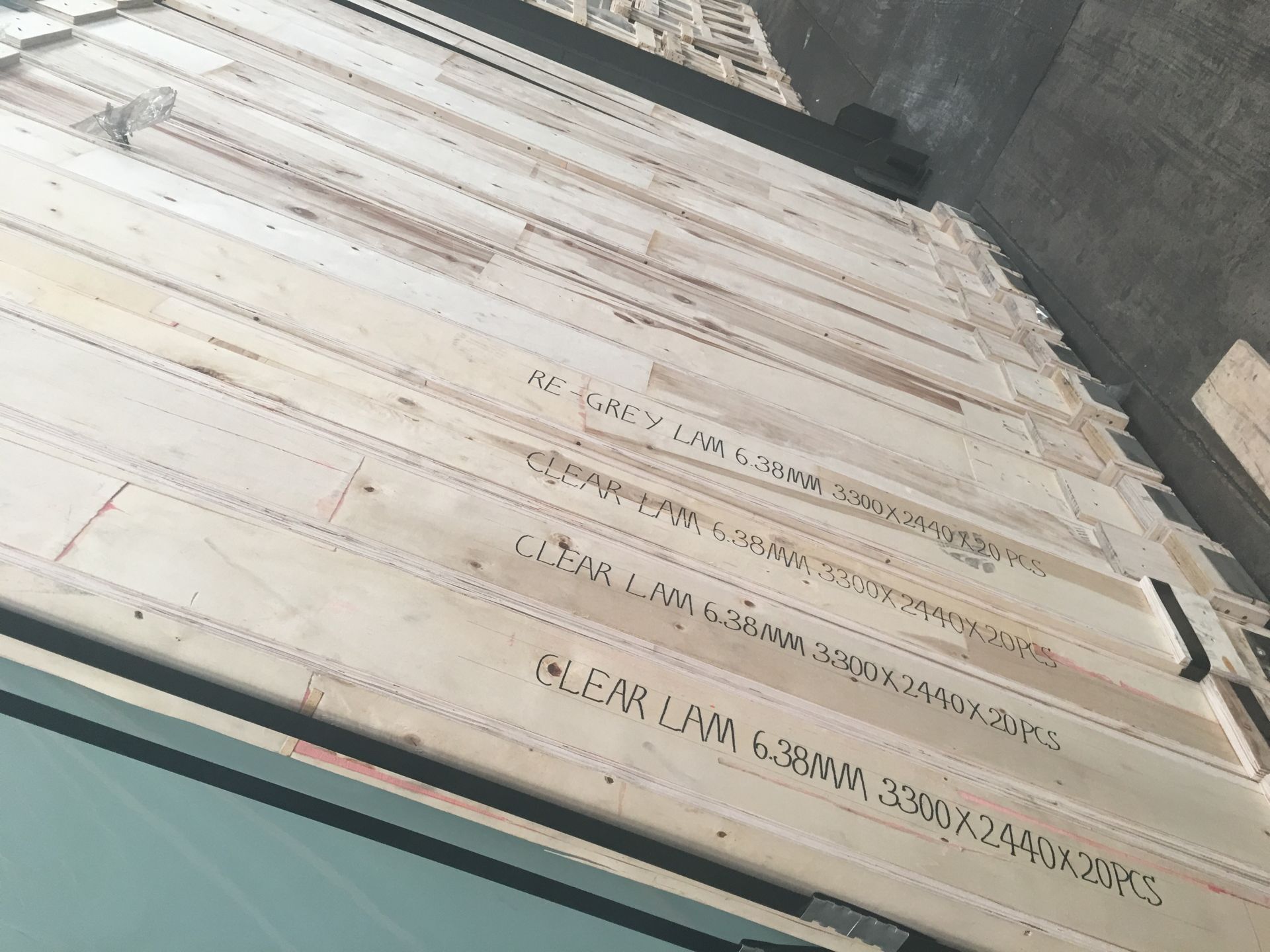

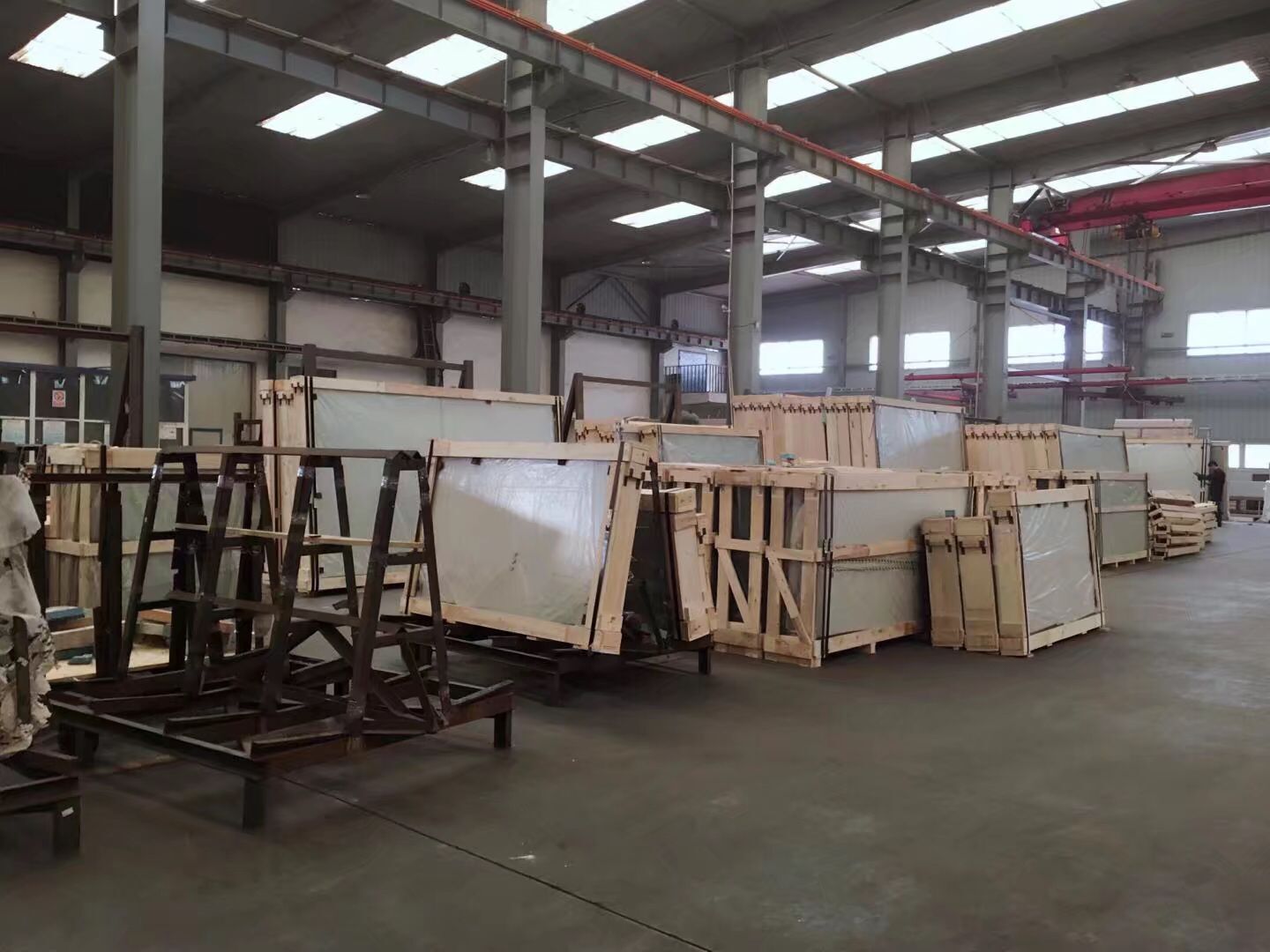

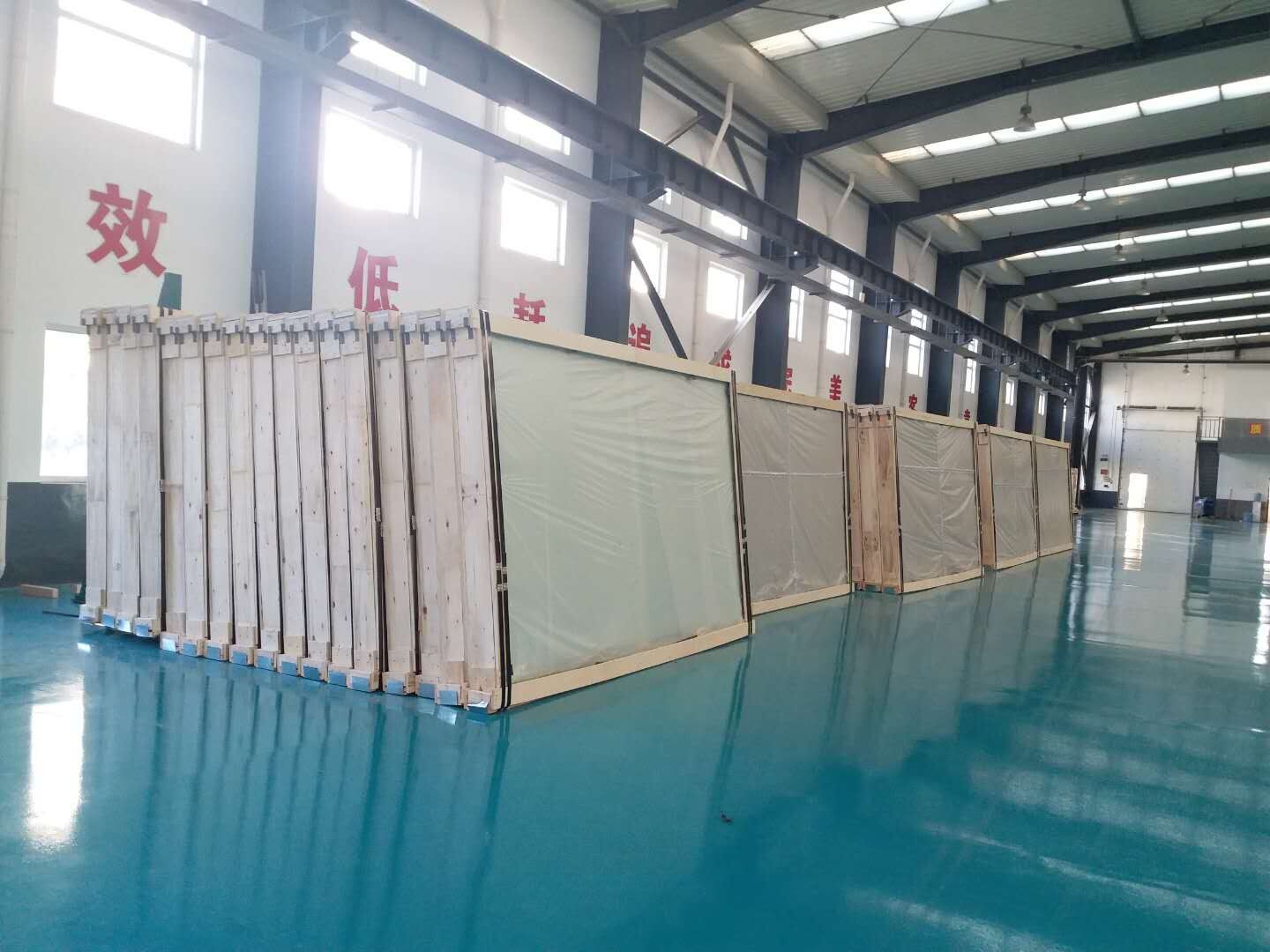

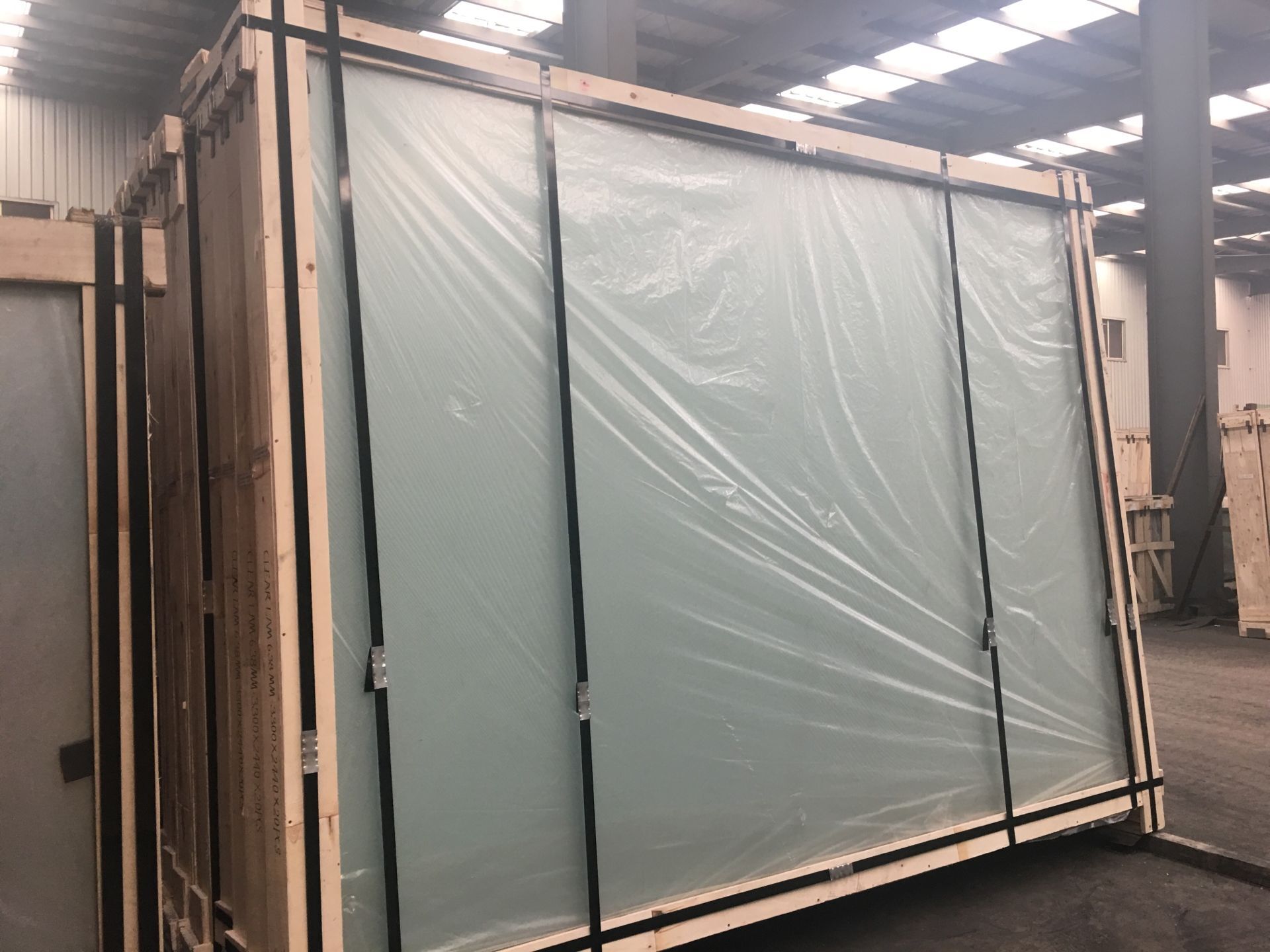

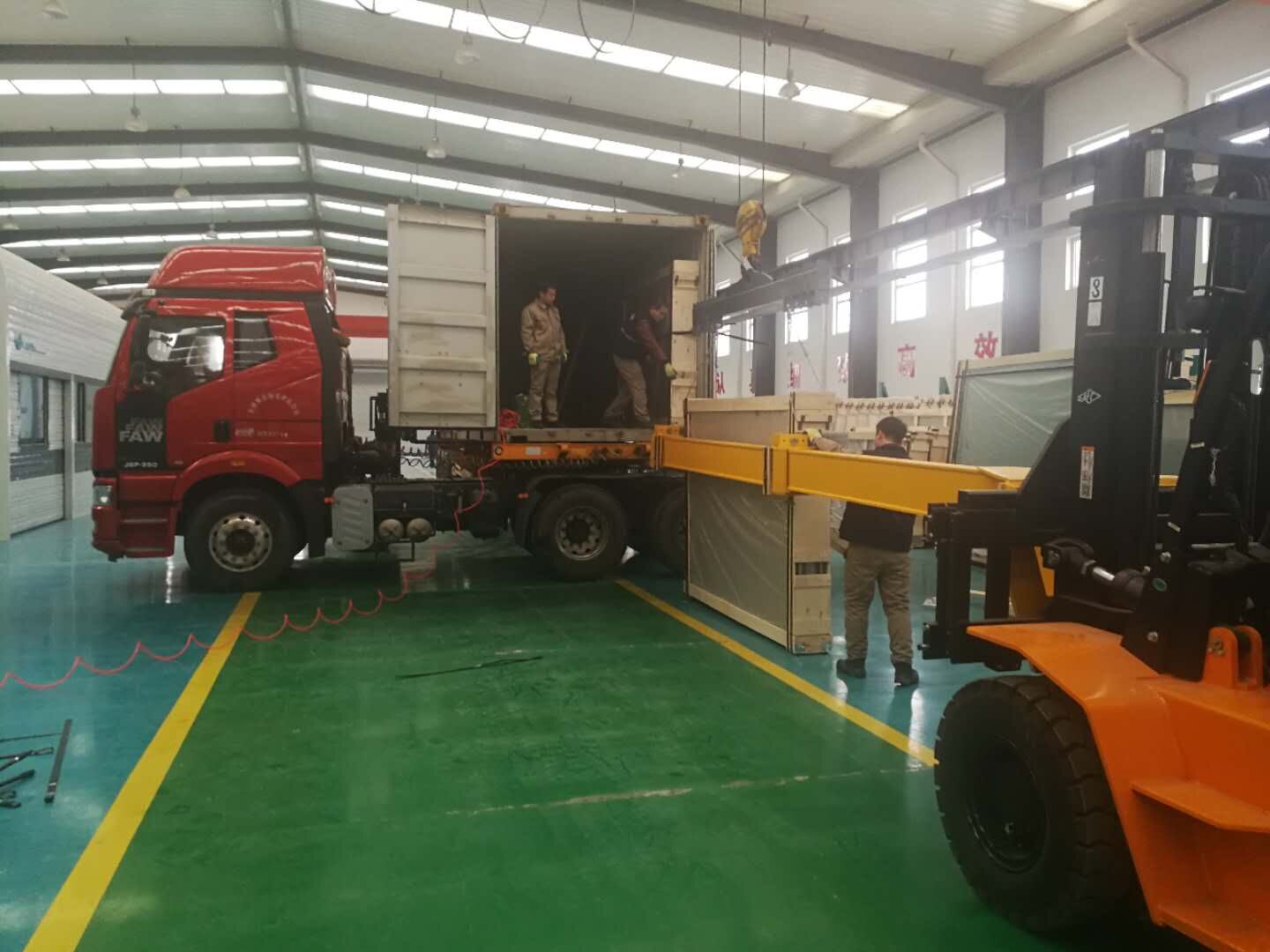

Packing	Wooden case with iron belt packing for FCL sea ship, full wooden box for LCL sea or air ship.
Certificate	CE/CCC/ISO9001/SGS
Glass accessories	U channel, Glass brackets, Glass door hinges, Door Handles, Door Knobs, Patch Fittings etc.

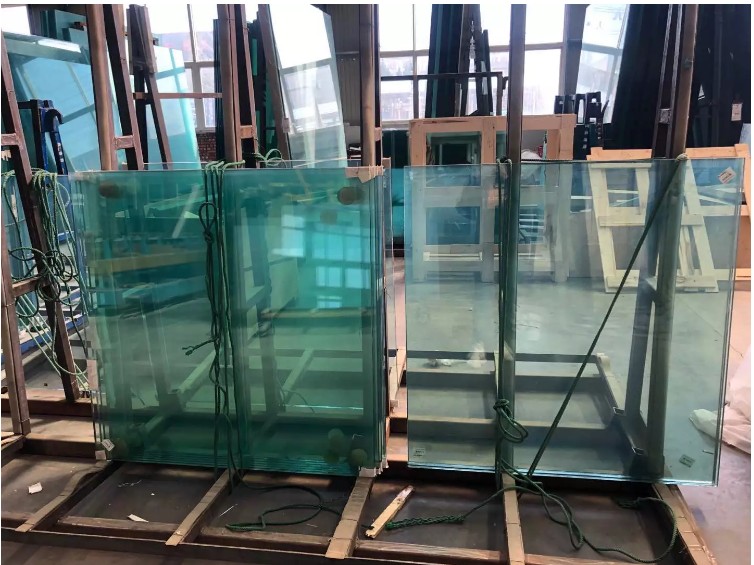

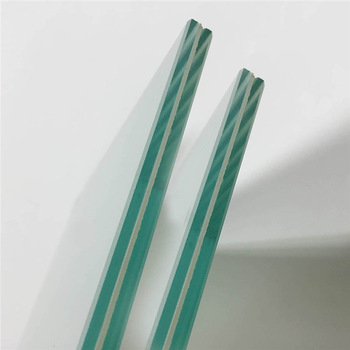

Laminated glass are made up of two or more sheets of glass bonded together with a plastic interlayer.

Laminated glass features:

1) Safety

As the laminated glassPVB glue is very toughness when the sandwich glass is broken as a result of external force ,the PVB glue coat will absorb a great deal of the impact energy and make it die away quickly ,consequently the PVB sandwich coat very difficult to be punctured and the glass can be maintained in the frame entirely and brings somewhat shading effect even if it suffers from cracks under the impact .viewed from such aspect , the sandwich glass is real safety glass.

2)Sound insulation

Because laminated glass PVB glue processes a highly strong blockage effect to sound waves , the sound waves obviously weakened when passing the sandwich glass , reducing the noise interference suffered by work occasions or household living .

3)UV proofing

Having a highly good proofing effect to UV rays (the proofing ratio is higher than 90%)the valuable indoor furniture ,exhibits, arts and other artcles from fading as a result of influence of the UV rays.

4)Application

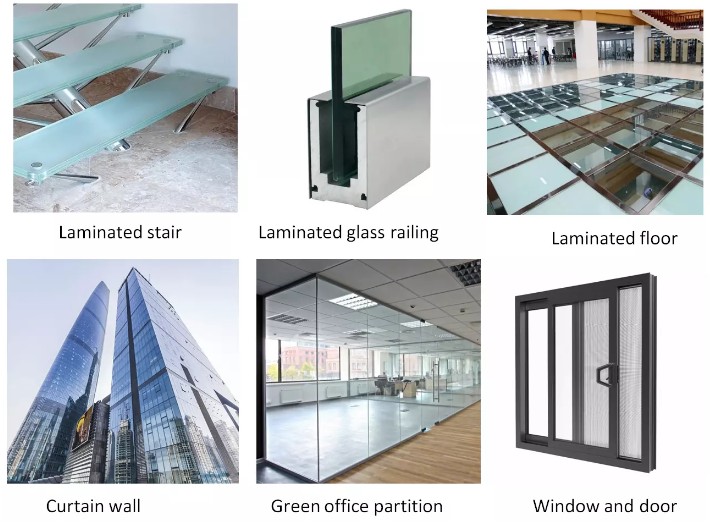

With unique characteristics ,the sandwich glass is widely adopted in artcles and occasions such as buildings grating ,aloft grounds ,high-rank curtain walls windows and doors, furniture ,show windows, aquarium.

5)Product type

Common transparent glass , main body colored sandwich glass, coated sandwich glass ,tempered sandwich glass , curved sandwich glass

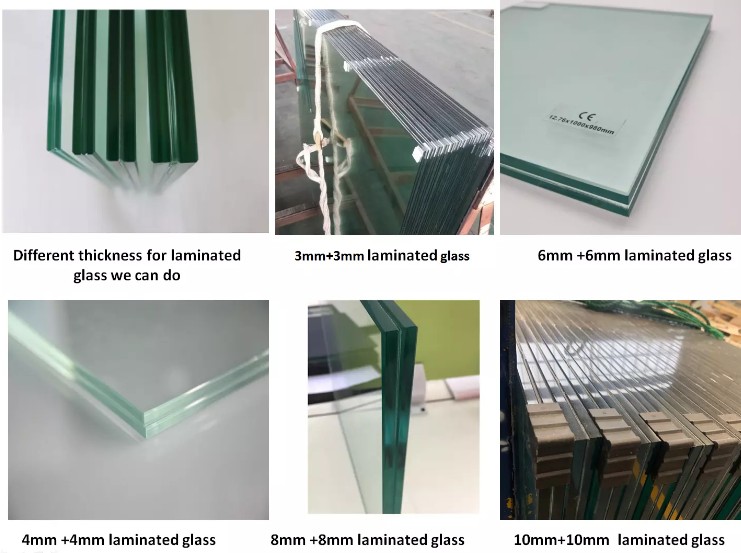

	clear laminated glass	1.clear float glass with clear PVB 2.glass thickness: 3mm,4mm,5mm,6mm,8mm, 10mm,12mm,15,,19mm 3.PVB thickness: 0.38mm,0.76mm,1.14mm, 1.52mm or more 4.normal size:24401830,33002140, size can be made as customer need.

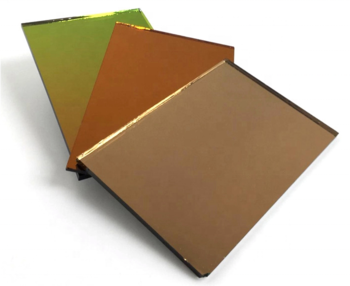

	colored laminate glass	1. clear float glass with colored PVB or Tinted glass with clear PVB 2.glass thickness: 3mm,4mm,5mm,6mm,8mm, 10mm,12mm,15,,19mm 3.glass color: blue, green,pink,bronze,grey,clear 4. PVB color: blue green,pink,bronze,grey,clear, yellow,orange,red,black,milk,etc. 5.PVB thickness: 0.38mm,0.76mm,1.14mm, 1.52mm or more 6.normal size:24401830,33002140, size can be made as customer need.
	Tempered laminate glass	1. clear tempered glass with clear PVB or colored PVB tinted tempered glass with clear PVB 2.glass thickness: 3mm,4mm,5mm,6mm,8mm, 10mm,12mm,15,,19mm 3.glass color: blue, green,pink,bronze,grey,clear 4. PVB color: blue green,pink,bronze,grey,clear, yellow,orange,red,black,milk,etc. 5.PVB thickness: 0.38mm,0.76mm,1.14mm, 1.52mm or more 6. size made as customer need 7. drilling holes or not as customer need
	bulletproof laminate glass	1.clear glass with clear PVB 2. 8MM+1.52PVB+8MM+15.2PVB+8MM 8MM+1.52PVB+8MM+15.2PVB+10MM 8MM+1.52PVB+8MM+15.2PVB+5MM 3. size made as customer need
